Overview

The NewSat satellite series, also referred to as ÑuSat, is a sequence of commercial Earth Observation (EO) satellites designed, built, and operated by Satellogic, that form the Aleph-1 constellation. Satellogic, an Argentinian company that specialises in EO satellites, was founded in 2010 by Emiliano Kargieman and Gerardo Richarte to provide commercially accessible, real-time, global imaging of Earth. The still and video imagery delivered by these microsatellites is available to customers for applications in the fields of agriculture and food production, monitoring within the oil and gas industry, cartography and urban planning, climate monitoring, resource management, disaster response, infrastructure monitoring, and to improve the monitoring, mapping, and management of forest resources. 1) 2) 3) 4)

The Aleph-1 constellation was preceded by three Satellogic nanosatellites for technology demonstration missions: CubeBug-1, CubeBug-2, and BugSat-1, launched in April 2013, November 2013, and June 2014 respectively. The first two NewSats, NewSat-1 (Fresco) and NewSat-2 (Batata), were launched two years later in May 2016. The overall goal of Satellogic is to have a constellation of 300 satellites, which would provide global coverage with a revisit time of 5 minutes (as shown in Figure 2). 1) 2) 3)

Spacecraft

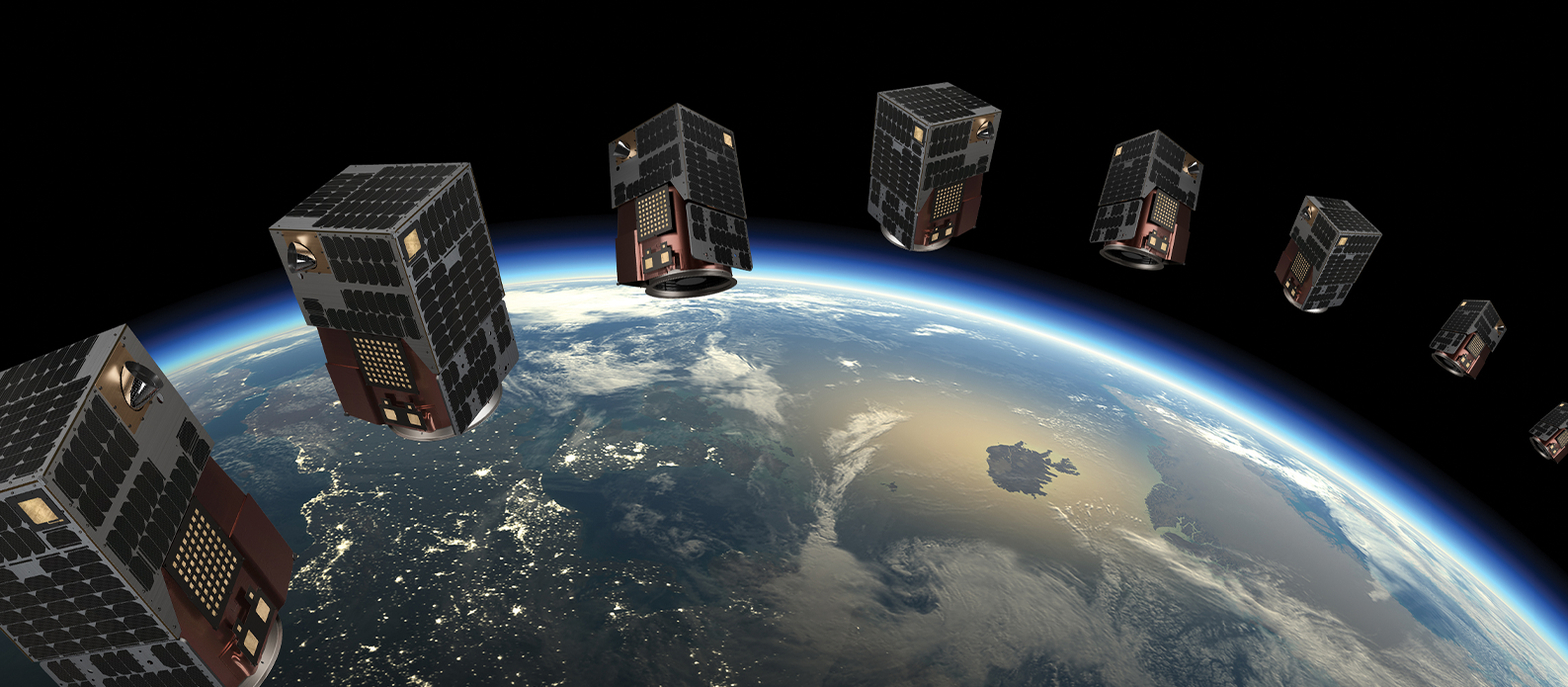

The Aleph-1 satellites are built on Satellogic’s NewSat platform, a compact Earth observation microsatellite bus designed from the outset for large-scale constellation deployment and continuous replenishment. Each spacecraft follows a standardized mechanical, electrical, and software architecture that enables high-rate serial production while maintaining consistent performance across the fleet. This approach allows Satellogic to rapidly deploy new satellites, introduce incremental upgrades, and sustain constellation availability over time. The NewSat platform is vertically integrated, with Satellogic developing and manufacturing the majority of spacecraft subsystems in-house. This includes the structural bus, avionics, power systems, attitude control components, and onboard computing, reducing reliance on external suppliers and allowing tighter control over cost, schedule, and system evolution. The result is a spacecraft optimized for frequent iteration and adaptability, rather than a static, long-lifecycle design. 37)
All the satellites in the Aleph-1 constellation are identical spacecraft, with a size of 0.51 × 0.57 × 0.82 m and a mass of 38.5 kg. 5)
From an operational standpoint, the spacecraft design supports coordinated constellation operations rather than independent satellite tasking. The Aleph-1 fleet is managed as a distributed system, enabling flexible scheduling, rapid retasking, and resilience to individual satellite degradation or failure. This constellation-first design philosophy is a key element of the NewSat platform and shows the ability to deliver high temporal revisit rates at global scale.
The NewSat bus is engineered to accommodate successive technology blocks without requiring major redesign, allowing Satellogic to introduce improvements in onboard computing, communications capacity, and spacecraft autonomy across production batches. These incremental upgrades are integrated while preserving a common form factor and operational interface, ensuring backward compatibility within the Aleph-1 constellation and simplifying mission operations. 34) 37)

Launches

Mission Status

• March 30, 2026: NewSat 53 and NewSat 54 (nicknamed Jane Goodall and Branca Edmée Marques respectively), were successfully launched aboard SpaceX's Transporter 16 Rideshare Mission, from Vandenberg Space Force Base’s Space Launch Complex 4E (SLC-4E) on March 30, 2026, at 11:02 UTC. 1) 41) 37)
• November 28, 2025: NewSat 47 (nicknamed Melina Furman), NewSat 51 (Beatrice Tinsley), and NewSat 52 (Yvonne Brill), were launched at 18:44 UTC from Vandenberg Space Force Base (VSFB), in California, aboard SpaceX’s Transporter 15 Rideshare mission. 1) 39)
• January 14, 2025: NewSat-45 (UzmaSAT-1), high-resolution earth observation satellite built for Malaysia’s Uzma, was successfully launched on SpaceX's Transporter-12 mission. The Falcon-9 rocket took off at 19:09 UTC from launch complex SLC-4E at Vandenberg Space Force Base, in California. 38)

• August 16, 2024: Satellogic launched three new satellites, NewSat-48 (Henrietta Leavitt), NewSat-49(Klára Dán von Neumann), and NewSat-50 (Nancy Roman), from the Vandenberg Space Force Base, California, onboard a Falcon-9 rocket as part of SpaceX’s Transporter-11 Rideshare mission. 8)

• April 7, 2024: Satellogic launched NewSat-46 (TSAT-1A), from Launch Complex 39A (LC-39A) at Kennedy Space Center in Florida, onboard SpaceX’s Falcon 9 as part of the Bandwagon-1 mission. NewSat-46 was built by India's Tata Advanced Systems Limited (TASL) in collaboration with Satellogic and it is based on Satellogic's NewSat Mark V satellite. 9) 10)

• March 4, 2024: Satellogic launched NewSat-44 (Maria Mitchell) on SpaceX’s Transporter-10 rideshare mission, from Space Launch Complex 4E at Vandenberg Space Force Base (VSFB) 1)

• June 12, 2023: Satellogic launched NewSat-40 (Carolyn Shoemaker), NewSat-41 (Cecilia Payne-Gaposchkin), NewSat-42 (Maria Wonenburger), and NewSat-43 (Rose Dieng-Kuntz)on SpaceX’s Transporter-8 rideshare mission, from Space Launch Complex 4E at Vandenberg Space Force Base (VSFB), California. 11)

• April 14, 2023: Satellogic launched NewSat-36 (Annie Jump Cannon), -37 (Joan Clarke), -38 (Maria Gaetana Agnesi), and -39 (Tikvah Alper), aboard the SpaceX Transporter-7 mission from Vandenberg Air Force Base, California. 1)

• January 3, 2023: Satellogic launched NewSat-32 (Albania-1), -33 (Albania-2), -34 (Amelia Earhart), and -35 (Williamia Fleming), aboard the SpaceX Transporter-6 mission from Vandenberg Air Force Base, California. 1)

• May 26, 2022: Satellogic launched NewSat-28 (Alice Lee), -29 (Edith Clarke), -30 (Margherita Hack), and -31 (Ruby Payne-Scott) aboard SpaceX's Transporter-5 mission. This brought the Aleph-1 constellation to 26 satellites. 1)

• April 1, 2022: Satellogic launched NewSat-23 (Annie Maunder), -24 (Kalpana Chawla), -25 (Mária Telkes), -26 (Mary Somerville), and -27 (Sally Ride) aboard SpaceX's Transporter-4 mission from Cape Canaveral Space Force Station, Florida. This brought the Aleph-1 constellation to 22 satellites. This was the first deployment of Satellogic’s new Mark V satellite model, which featured improved cameras, radios, computers, and other subsystems compatible with all components from previous models. The remaining four satellites were updated NewSats Mark IV satellites. 1) 14)

• June 30, 2021: Satellogic launched NewSat-19 (Rosalind Franklin), -20 (Grace Hopper), -21 (Elisa Bachofen), and -22 (Sofya Kovalevskaya), onboard SpaceX’s Transporter-2 mission from Cape Canaveral Space Force Station, Florida. This brought the Aleph-1 constellation to 17 satellites, allowing up to 4 daily revisits of any point of interest and expanded collection capacity of more than 5 million km2 per day in high-resolution. 23)

• November 6, 2020: Satellogic launched NewSat-9 (Alice Ball), -10 (Caroline Herschel), -11 (Cora Ratto), -12 (Dorothy Voughan), -13 (Emmy Noether), -14 (Hedy Lamarr), -15 (Katherine Johnson), -16 (Lise Meitner), -17 (Mary Jackson), and -18 (Vera Rubin) onboard the Long March-6 (Y3), Chang Zheng-6, rocket from the LC-16 launch complex of the Taiyuan Satellite Launch Center. 26)

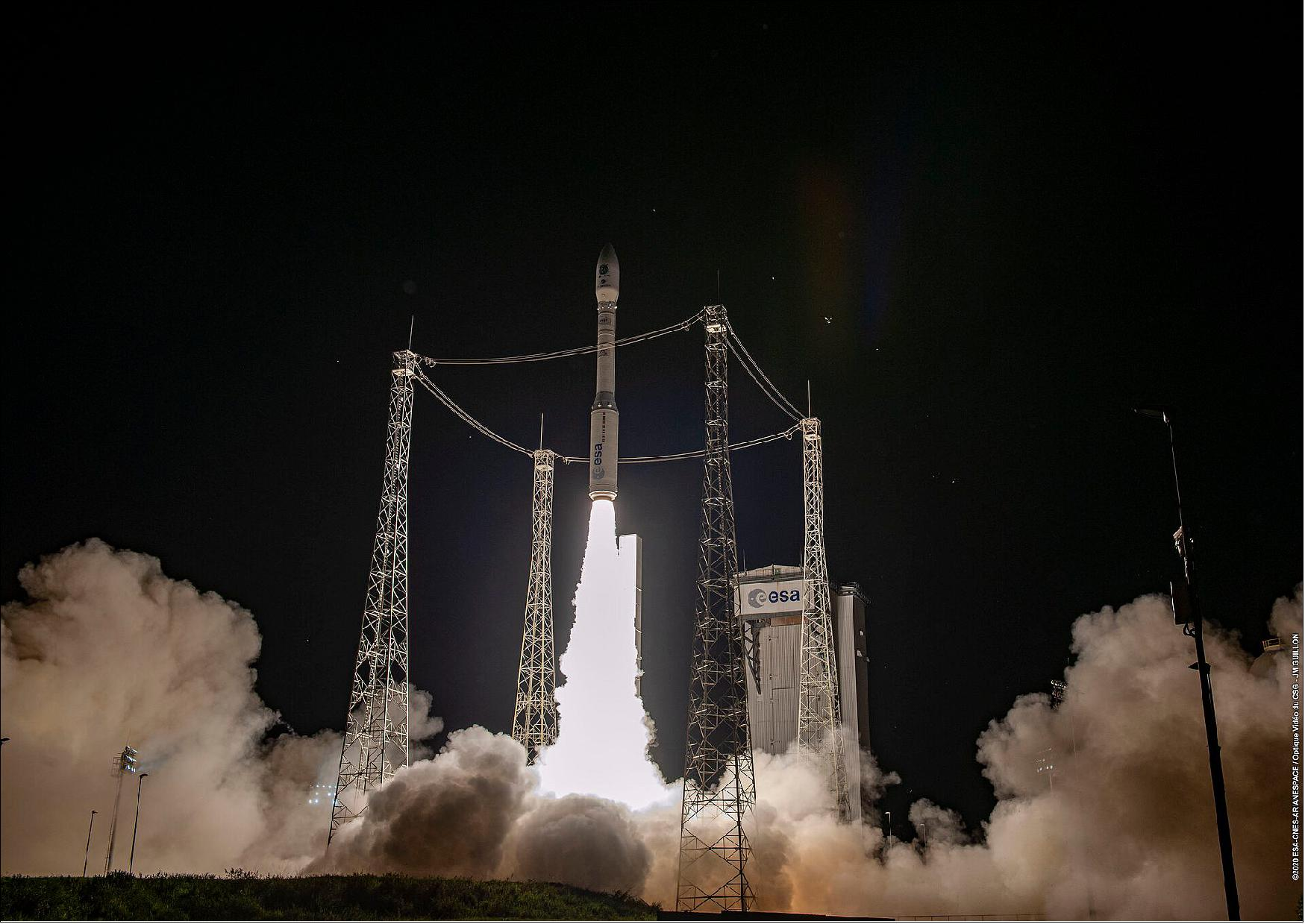

• September 4, 2020: Satellogic launched NewSat-6 (Hypatia) from the Guiana Space Center in Kourou, French Guiana, onboard ESA’s Vega rideshare service using the Small Spacecraft Mission Service (SSMS) dispenser operated by Arianespace. 27) 28)

• January 15, 2020: NewSat-7 (Sophie) NewSat-8 (Marie) launched. 37) 31)

• June 27, 2018: Satellogic launched a subscription-based service that allowed customers, including government agencies or non-governmental organisations, to purchase satellite images over a specified area of interest. 32)

• February 2, 2018: NewSat-4 (Ada) and NewSat-5 (Maryam) launched. 37)

• June 15, 2017: NewSat-3 (Milanesat) launched. 37)

• May 30, 2016: NewSat-1 (Fresco) and NewSat-2 (Batata) launched. 37) 33)

Sensor Complement

NewSat Imager

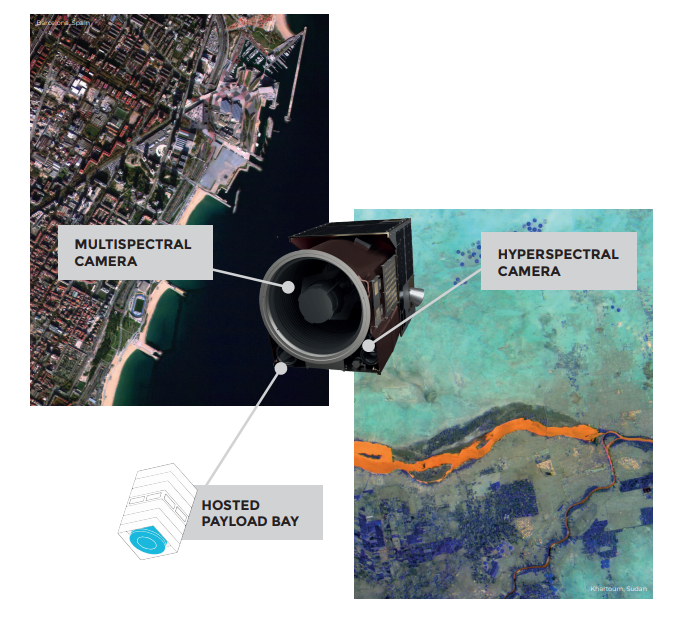

The NewSat Mark IV spacecraft are equipped with a single integrated imaging instrument, the NewSat Imager, which operates across multiple spectral modes including hyperspectral, multispectral, and panchromatic bands, using a hyperspectral and sensors. The spacecraft also carries a general-purpose HD camera, as well as extra space for hosted payloads and scientific experiments. The constellation can acquire imagery in three different modes: strip mode, oblique strip mode, and spotlight mode. 34)

Hyperspectral Sensor

The hyperspectral camera onboard NewSat is limited for select customer missions. It collects imagery at a resolution of 30 m across 29 spectral bands in the visible to near-infrared (460 - 830nm) range. All bands are ortho-rectified and GIS-ready. 34) 35)

Multispectral Sensor

NewSat’s multispectral sensor houses four spectral bands (red, green, blue and near-infrared), with a spectral range of 450 - 900 nm. The newest generation of NewSats are able to deliver 0.7 m resolution imagery with a 5 km swath width using the onboard multispectral camera. 8) 37)

The basic resolution of the multispectral imagery has a 0.99 m GSD at nadir for all spectral bands. Super Resolution enhances the spatial resolution of the multispectral imagery to 70 cm using proprietary processing techniques. 34) 35)

Additional Instrument Features and Capabilities

High Dynamic Range (HDR) imaging improves scene contrast with a dynamic range up to 66 dB. The sensor optics deliver a Modulation Transfer Function (MTF) greater than 15% at Nyquist frequency, ensuring sharp, high-quality imagery.
Boresight pointing flexibility of ±25° allows for off-nadir imaging and improved revisit opportunities.
The onboard HD camera supports video capture at 720p, 1080p, and 4K resolutions across all spectral bands for detailed time-series observations. 40)

Ground Segment

The Aleph-1 constellation is supported by a global network of ground stations strategically located to maximize daily satellite contact opportunities and optimize data downlink capacity. The primary ground station at Svalbard, Norway provides downlink capabilities in support of more than 10 passes per day. It has two antennas to support two satellites simultaneously on polar orbits. The Cordoba, Argentina, ground station is located in the CONAE (Comisión Nacional de Actividades Espaciales) facility, and provides support for approximately six passes daily to serve as a critical node for satellite telemetry, tracking, and command (TT&C) operations.

The Aleph-1 satellites employ S-band communications for command uplink at 2080 MHz while employing two X-band feeds for downlinking, one at 8030 MHz using a custom protocol at approximately 100 Kb/s telemetry downlink, and a high-speed DVB-S2 (Digital Video Broadcasting-Second Generation) X-band channel operating at 8050-8100 MHz to downlink high-volume imaging data products efficiently. The system maintains a signal-to-noise ratio of 43 dB to ensure high-quality communications even under challenging conditions.
Mission control and data processing are centralized at Satellogic’s operations center, which coordinates constellation management, scheduling, and data delivery pipelines. This setup supports rapid tasking changes and enables near-real-time access to imagery products for end users. To augment these fixed ground stations, Satellogic is exploring partnerships with commercial ground station providers worldwide to expand coverage and improve revisit frequency. These collaborations aim to reduce latency in data delivery and increase constellation resilience by providing multiple communication paths. 36) 40)
